JBD LiFePO4 BMS 20S 100A
JBD LiFePO4 BMS for 20S packs (64.0 V), 100 A continuous.
🚚 Free delivery across India · dispatch in 1–2 working days
This product is sold without any warranty. Only damaged, defective or wrong items are replaced within 7 days of delivery.
इस प्रोडक्ट पर कोई वारंटी नहीं है। सिर्फ़ टूटा हुआ, ख़राब या ग़लत प्रोडक्ट डिलीवरी के 7 दिन के अंदर बदला जाता है।

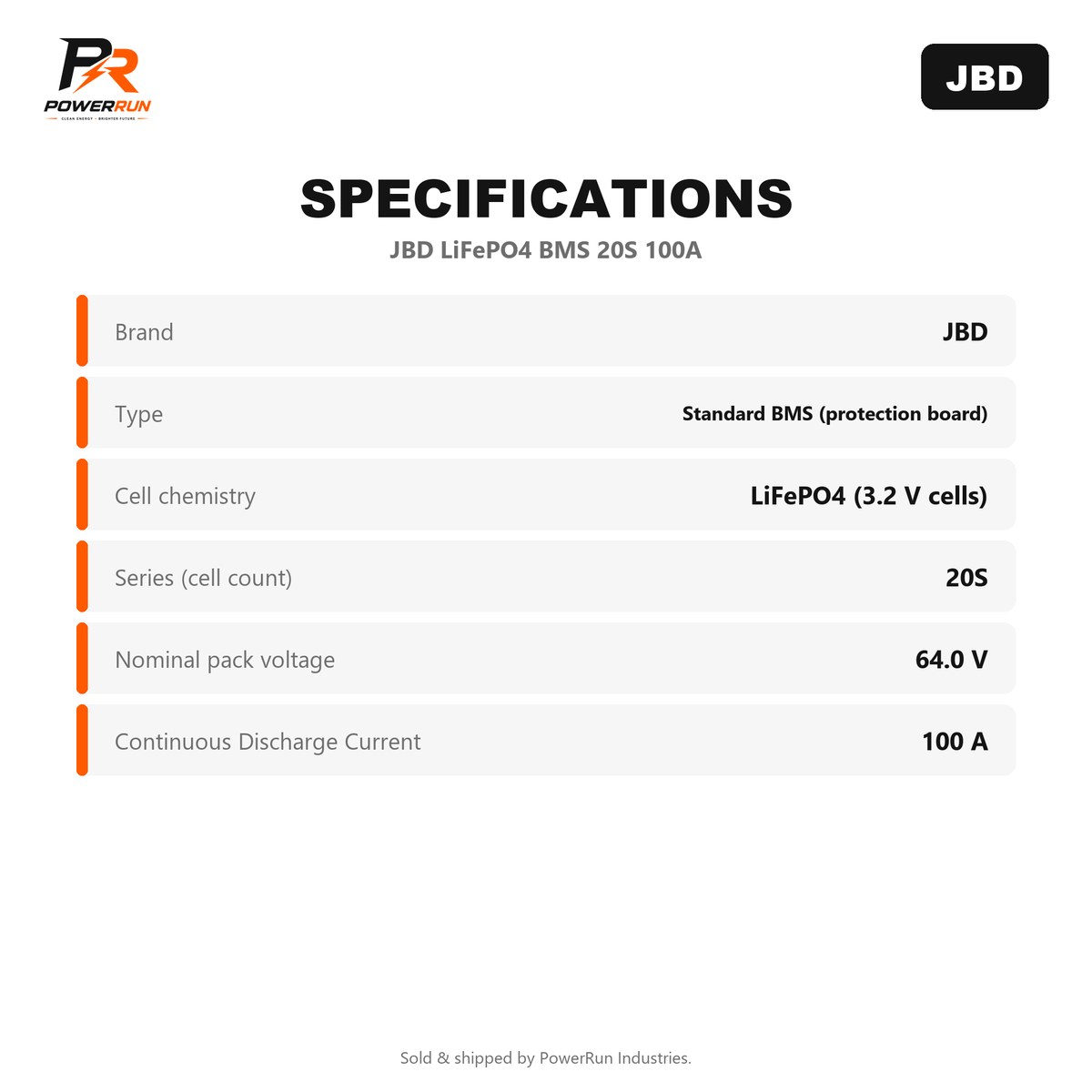

Specifications
| Brand | JBD |
| Type | Standard BMS (protection board) |
| Cell chemistry | LiFePO4 (3.2 V cells) |
| Series (cell count) | 20S |
| Nominal pack voltage | 64.0 V |
| Continuous Discharge Current | 100 A |
Key Features
- For 20S LiFePO4 packs (64.0 V)
- 100 A continuous discharge
- Over-charge, over-discharge, over-current and short-circuit protection
Product Description
The JBD LiFePO4 BMS 20S 100A is a JBD part for 20S LiFePO4 battery packs (64.0 V nominal) - typically 60-64 V e-scooter batteries - drawing up to 100 A. For 20S LiFePO4 packs (64.0 V). 100 A continuous discharge. Over-charge, over-discharge, over-current and short-circuit protection. Sold and shipped by PowerRun Industries with free pan-India delivery. PowerRun does not offer a separate warranty on JBD parts; damaged, defective or wrong items are replaced within 7 days of delivery as per our refund policy. Not sure which model fits your pack? Send us your cell type, series count (S) and current on WhatsApp and we will help you choose.
SIZING & FIT GUIDE
साइज़ और फ़िट गाइड
Which packs this BMS fits
Pack voltages for LiFePO4 cells (3.2 V nominal, 3.65 V full, 2.5 V cut-off per cell) and the continuous power the JBD LiFePO4 BMS 20S 100A can carry at its rated 100 A:
| Series | Nominal | Full charge | Cut-off | Power at 100 A | Typical use |
|---|---|---|---|---|---|
| 20S | 64.0 V | 73.0 V | 50.0 V | 6.4 kW | 60 V e-scooties and e-bikes |
Inverter, cable and fuse
On a 20S pack (64.0 V) the BMS passes up to about 6.4 kW, so it suits an inverter or motor controller drawing no more than about 6.4 kW from the battery (about 5.8 kW of AC output at 90% inverter efficiency). For the main battery leads use at least 16 mm² (6 AWG) copper cable and a 125 A DC fuse or breaker; if your load pulls more than 100 A for long, choose a higher-current BMS.
20S पैक (64.0 V) पर यह BMS लगभग 6.4 kW तक की पावर दे सकता है। मेन बैटरी केबल कम से कम 16 mm² (6 AWG) कॉपर रखें और 125 A का DC फ़्यूज़ लगाएँ।
Closest alternative: the JBD LiFePO4 BMS 4S 100A differs only in nominal pack voltage 64.0 V here against 12.8 V; series (cell count) 20S here against 4S, and this one costs ₹1,660 more than it.
Closest alternative: the JBD LiFePO4 BMS 8S 100A differs only in nominal pack voltage 64.0 V here against 25.6 V; series (cell count) 20S here against 8S, and this one costs ₹1,190 more than it.
Closest alternative: the JBD LiFePO4 BMS 16S 100A differs only in nominal pack voltage 64.0 V here against 51.2 V; series (cell count) 20S here against 16S, and this one costs ₹300 more than it.
Compare with similar models
| Model | Type | Series (cell count) | Price |
|---|---|---|---|
| JBD LiFePO4 BMS 20S 100A (this page) | Standard BMS (protection board) | 20S | ₹3,179 |
| JBD Li-ion (NMC) BMS 20S 100A | Standard BMS (protection board) | 20S | ₹3,459 |
