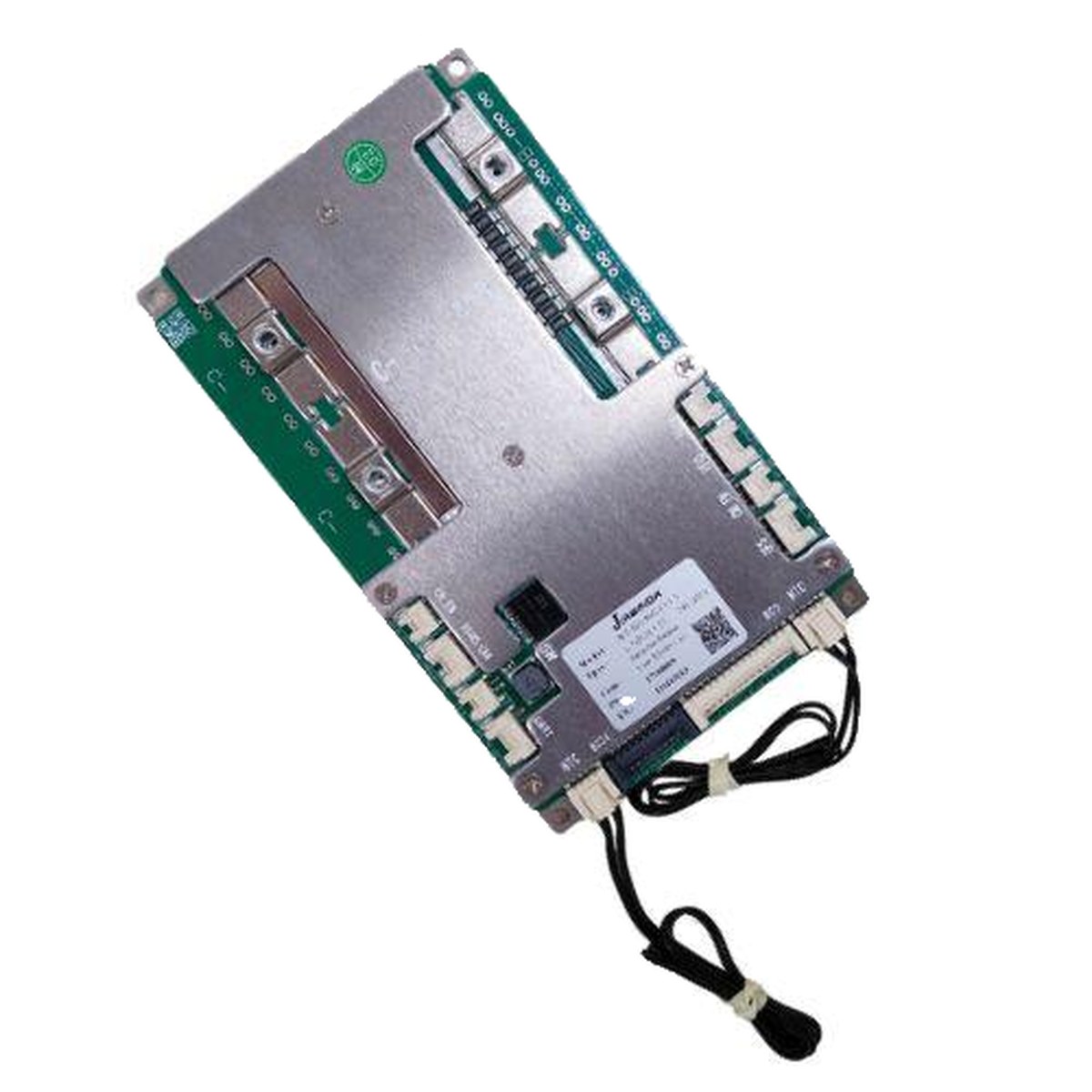

JBD Smart BMS 8S-24S 200A
JBD Smart BMS for 8S-24S lithium packs, 200 A continuous, UART communication.
🚚 Free delivery across India · dispatch in 1–2 working days
This product is sold without any warranty. Only damaged, defective or wrong items are replaced within 7 days of delivery.
इस प्रोडक्ट पर कोई वारंटी नहीं है। सिर्फ़ टूटा हुआ, ख़राब या ग़लत प्रोडक्ट डिलीवरी के 7 दिन के अंदर बदला जाता है।

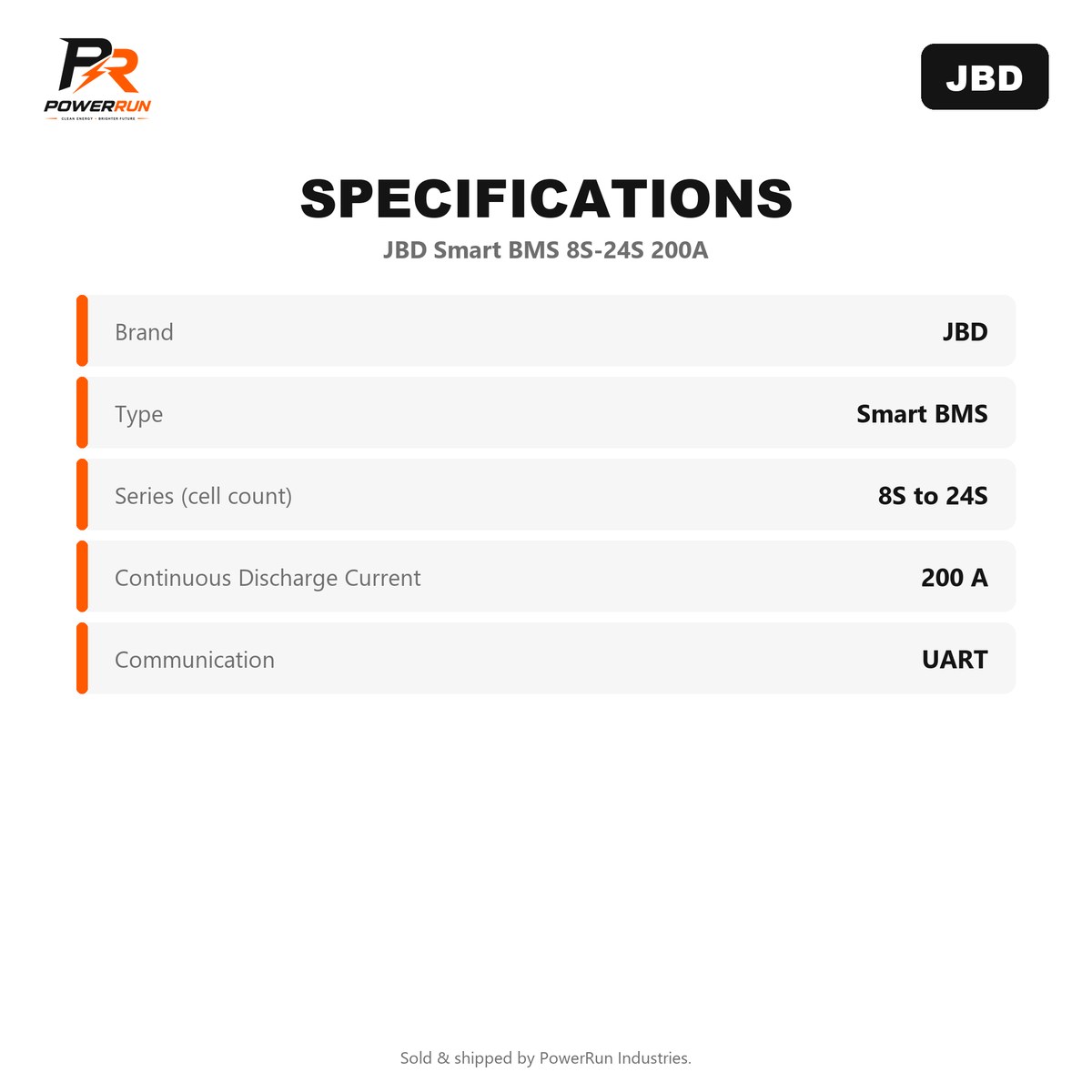

Specifications
| Brand | JBD |
| Type | Smart BMS |
| Series (cell count) | 8S to 24S |
| Continuous Discharge Current | 200 A |
| Communication | UART |
Key Features
- Smart BMS with UART communication
- For 8S-24S lithium packs
- 200 A continuous discharge
- Bluetooth monitoring with the JBD Bluetooth module
Product Description
The JBD Smart BMS 8S-24S 200A is a JBD part for 8S-24S lithium battery packs drawing up to 200 A continuously. Smart BMS with UART communication. For 8S-24S lithium packs. 200 A continuous discharge. Bluetooth monitoring with the JBD Bluetooth module. Sold and shipped by PowerRun Industries with free pan-India delivery. PowerRun does not offer a separate warranty on JBD parts; damaged, defective or wrong items are replaced within 7 days of delivery as per our refund policy. Not sure which model fits your pack? Send us your cell type, series count (S) and current on WhatsApp and we will help you choose.
SIZING & FIT GUIDE
साइज़ और फ़िट गाइड
Which packs this BMS fits
Pack voltages for LiFePO4 cells (3.2 V nominal, 3.65 V full, 2.5 V cut-off per cell) and the continuous power the JBD Smart BMS 8S-24S 200A can carry at its rated 200 A:
| Series | Nominal | Full charge | Cut-off | Power at 200 A | Typical use |
|---|---|---|---|---|---|
| 8S | 25.6 V | 29.2 V | 20.0 V | 5.1 kW | 24 V inverters, 3.6-4.2 kW hybrid inverters, solar storage |
| 15S | 48.0 V | 54.8 V | 37.5 V | 9.6 kW | 48 V inverters, e-rickshaws, e-loaders and solar storage |
| 16S | 51.2 V | 58.4 V | 40.0 V | 10.2 kW | 48 V inverters, e-rickshaws, e-loaders and solar storage |
| 20S | 64.0 V | 73.0 V | 50.0 V | 12.8 kW | 60 V e-scooties and e-bikes |
| 24S | 76.8 V | 87.6 V | 60.0 V | 15.4 kW | 72 V e-scooties, e-bikes and golf carts |
Inverter, cable and fuse
On a 16S pack (51.2 V) the BMS passes up to about 10.2 kW, so it suits an inverter or motor controller drawing no more than about 10.2 kW from the battery (about 9.2 kW of AC output at 90% inverter efficiency). For the main battery leads use at least 35 mm² (2 AWG) copper cable and a 250 A DC fuse or breaker; if your load pulls more than 200 A for long, choose a higher-current BMS.
16S पैक (51.2 V) पर यह BMS लगभग 10.2 kW तक की पावर दे सकता है। मेन बैटरी केबल कम से कम 35 mm² (2 AWG) कॉपर रखें और 250 A का DC फ़्यूज़ लगाएँ।
Closest alternative: the JBD Smart BMS 8S-24S 100A differs only in continuous discharge current 200 A here against 100 A, and this one costs ₹3,540 more than it.
Closest alternative: the JBD Smart BMS 3S-4S 100A differs only in continuous discharge current 200 A here against 100 A; series (cell count) 8S to 24S here against 3S to 4S, and this one costs ₹7,280 more than it.
Closest alternative: the JBD Smart BMS 10S-17S 60A differs only in continuous discharge current 200 A here against 60 A; series (cell count) 8S to 24S here against 10S to 17S, and this one costs ₹6,940 more than it.
Compare with similar models
| Model | Continuous discharge current | Price |
|---|---|---|
| JBD Smart BMS 8S-24S 200A (this page) | 200 A | ₹10,119 |
| JBD Smart BMS 8S-24S 100A | 100 A | ₹6,579 |
