JK Semi-Smart BMS 8S-24S 100A
JK Semi-Smart BMS for 8S-24S lithium packs, 100 A continuous, 0.6 A active balancing.
🚚 Free delivery across India · dispatch in 1–2 working days
This product is sold without any warranty. Only damaged, defective or wrong items are replaced within 7 days of delivery.
इस प्रोडक्ट पर कोई वारंटी नहीं है। सिर्फ़ टूटा हुआ, ख़राब या ग़लत प्रोडक्ट डिलीवरी के 7 दिन के अंदर बदला जाता है।

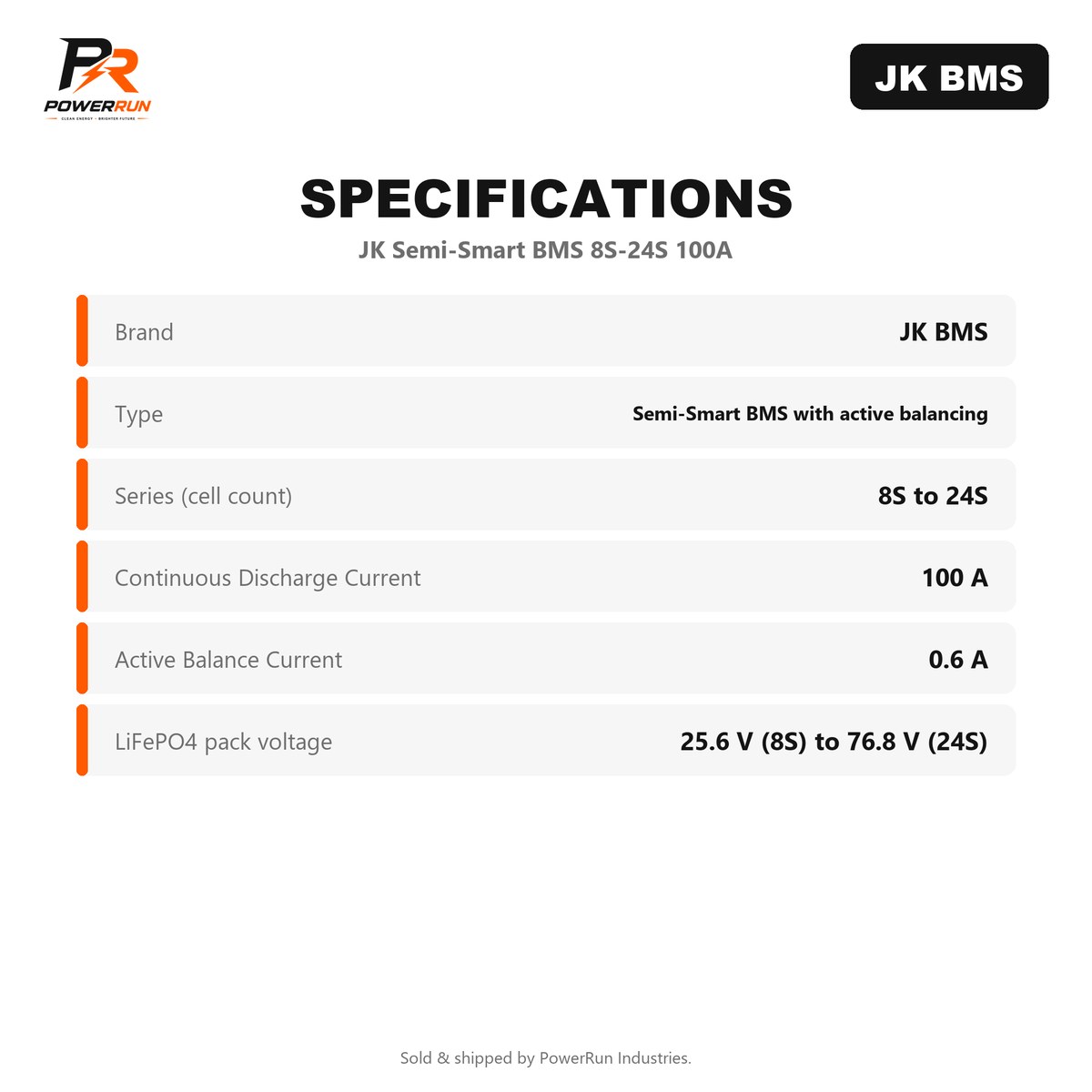

Specifications
| Brand | JK BMS |
| Type | Semi-Smart BMS with active balancing |
| Series (cell count) | 8S to 24S |
| Continuous Discharge Current | 100 A |
| Active Balance Current | 0.6 A |
| LiFePO4 pack voltage | 25.6 V (8S) to 76.8 V (24S) |
Key Features
- Active cell balancing (0.6 A)
- For 8S to 24S lithium packs
- 100 A continuous discharge
Product Description
The JK Semi-Smart BMS 8S-24S 100A is a JK BMS part for 8S-24S lithium battery packs - for example a 16S LiFePO4 pack (51.2 V) - drawing up to 100 A continuously. Active cell balancing (0.6 A). For 8S to 24S lithium packs. 100 A continuous discharge. Sold and shipped by PowerRun Industries with free pan-India delivery. PowerRun does not offer a separate warranty on JK parts; damaged, defective or wrong items are replaced within 7 days of delivery as per our refund policy. Not sure which model fits your pack? Send us your cell type, series count (S) and current on WhatsApp and we will help you choose.
SIZING & FIT GUIDE
साइज़ और फ़िट गाइड
Which packs this BMS fits
Pack voltages for LiFePO4 cells (3.2 V nominal, 3.65 V full, 2.5 V cut-off per cell) and the continuous power the JK Semi-Smart BMS 8S-24S 100A can carry at its rated 100 A:
| Series | Nominal | Full charge | Cut-off | Power at 100 A | Typical use |
|---|---|---|---|---|---|
| 8S | 25.6 V | 29.2 V | 20.0 V | 2.6 kW | 24 V inverters, 3.6-4.2 kW hybrid inverters, solar storage |
| 15S | 48.0 V | 54.8 V | 37.5 V | 4.8 kW | 48 V inverters, e-rickshaws, e-loaders and solar storage |
| 16S | 51.2 V | 58.4 V | 40.0 V | 5.1 kW | 48 V inverters, e-rickshaws, e-loaders and solar storage |
| 20S | 64.0 V | 73.0 V | 50.0 V | 6.4 kW | 60 V e-scooties and e-bikes |
| 24S | 76.8 V | 87.6 V | 60.0 V | 7.7 kW | 72 V e-scooties, e-bikes and golf carts |
Inverter, cable and fuse
On a 16S pack (51.2 V) the BMS passes up to about 5.1 kW, so it suits an inverter or motor controller drawing no more than about 5.1 kW from the battery (about 4.6 kW of AC output at 90% inverter efficiency). For the main battery leads use at least 16 mm² (6 AWG) copper cable and a 125 A DC fuse or breaker; if your load pulls more than 100 A for long, choose a higher-current BMS.
16S पैक (51.2 V) पर यह BMS लगभग 5.1 kW तक की पावर दे सकता है। मेन बैटरी केबल कम से कम 16 mm² (6 AWG) कॉपर रखें और 125 A का DC फ़्यूज़ लगाएँ।
Closest alternative: the JK Semi-Smart BMS 8S-24S 40A differs only in continuous discharge current 100 A here against 40 A, and this one costs ₹1,680 more than it.
Closest alternative: the JK Semi-Smart BMS 8S-24S 60A differs only in continuous discharge current 100 A here against 60 A, and this one costs ₹1,360 more than it.
Closest alternative: the JK Semi-Smart BMS 8S-24S 80A differs only in continuous discharge current 100 A here against 80 A, and this one costs ₹710 more than it.
Compare with similar models
| Model | Type | Continuous discharge current | Active balance current | Price |
|---|---|---|---|---|
| JK Semi-Smart BMS 8S-24S 100A (this page) | Semi-Smart BMS with active balancing | 100 A | 0.6 A | ₹4,799 |
| JK Semi-Smart BMS 8S-24S 40A | Semi-Smart BMS with active balancing | 40 A | 0.6 A | ₹3,119 |
| JK Semi-Smart BMS 8S-24S 60A | Semi-Smart BMS with active balancing | 60 A | 0.6 A | ₹3,439 |
| JK Semi-Smart BMS 8S-24S 80A | Semi-Smart BMS with active balancing | 80 A | 0.6 A | ₹4,089 |
| JK Smart BMS 8S-24S 80A | Smart BMS with active balancing | 80 A | 0.6 A | ₹4,829 |
| JK Semi-Smart BMS 8S-24S 150A | Semi-Smart BMS with active balancing | 150 A | 0.6 A | ₹5,699 |
| JK Smart BMS 8S-24S 150A | Smart BMS with active balancing | 150 A | 0.6 A | ₹6,759 |
| JK Smart BMS 8S-24S 150A (1A Balance) | Smart BMS with active balancing | 150 A | 1 A | ₹8,189 |
| JK Smart BMS 8S-24S 200A (2A Balance) | Smart BMS with active balancing | 200 A | 2 A | ₹13,549 |
