JK Smart BMS 8S-20S 100A
JK Smart BMS for 8S-20S lithium packs, 100 A continuous, 0.6 A active balancing.
🚚 Free delivery across India · dispatch in 1–2 working days
This product is sold without any warranty. Only damaged, defective or wrong items are replaced within 7 days of delivery.
इस प्रोडक्ट पर कोई वारंटी नहीं है। सिर्फ़ टूटा हुआ, ख़राब या ग़लत प्रोडक्ट डिलीवरी के 7 दिन के अंदर बदला जाता है।

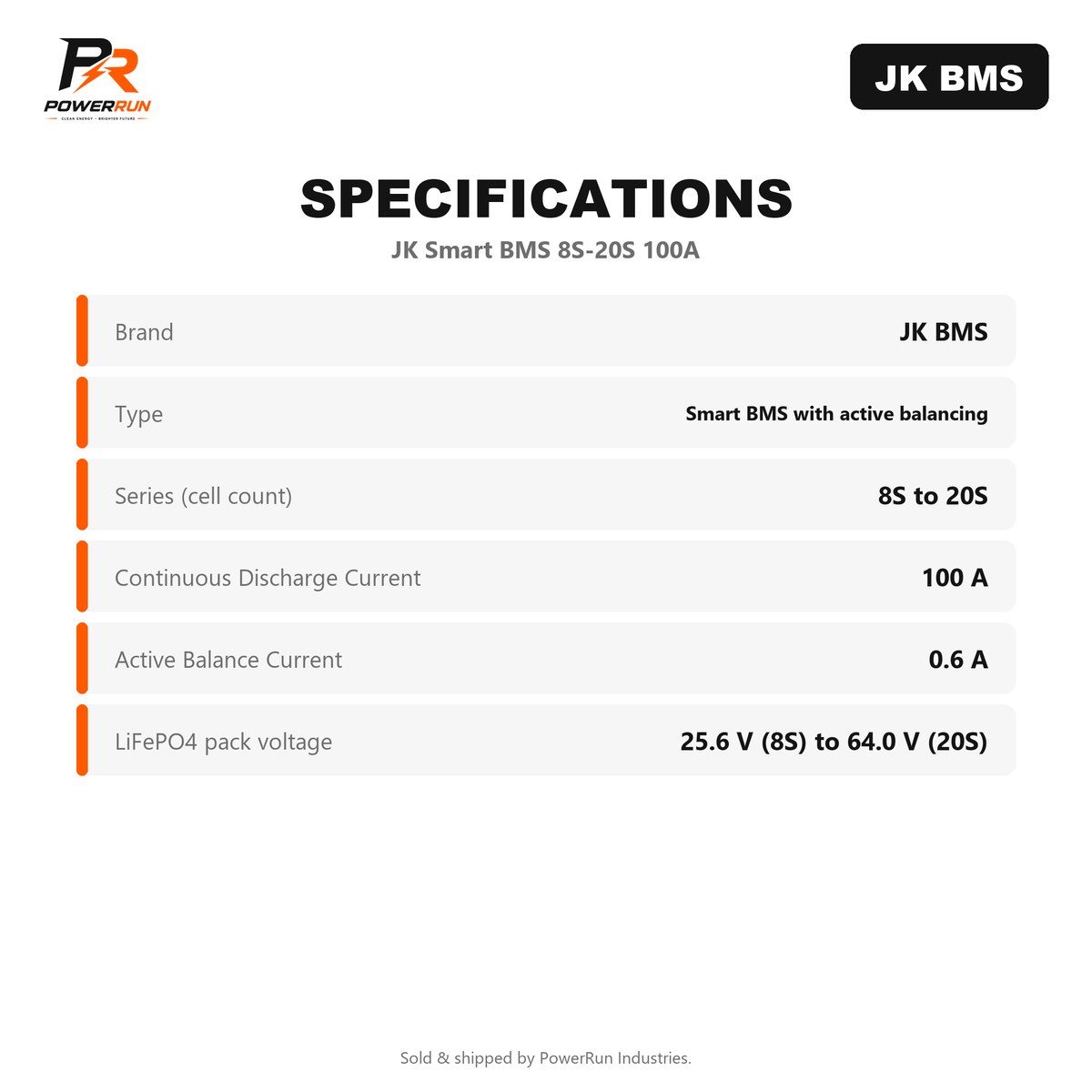

Specifications
| Brand | JK BMS |
| Type | Smart BMS with active balancing |
| Series (cell count) | 8S to 20S |
| Continuous Discharge Current | 100 A |
| Active Balance Current | 0.6 A |
| LiFePO4 pack voltage | 25.6 V (8S) to 64.0 V (20S) |
Key Features
- Active cell balancing (0.6 A)
- For 8S to 20S lithium packs
- 100 A continuous discharge
- Bluetooth app monitoring
Product Description
The JK Smart BMS 8S-20S 100A is a JK BMS part for 8S-20S lithium battery packs - for example a 16S LiFePO4 pack (51.2 V) - drawing up to 100 A continuously. Active cell balancing (0.6 A). For 8S to 20S lithium packs. 100 A continuous discharge. Bluetooth app monitoring. Sold and shipped by PowerRun Industries with free pan-India delivery. PowerRun does not offer a separate warranty on JK parts; damaged, defective or wrong items are replaced within 7 days of delivery as per our refund policy. Not sure which model fits your pack? Send us your cell type, series count (S) and current on WhatsApp and we will help you choose.
SIZING & FIT GUIDE
साइज़ और फ़िट गाइड
Which packs this BMS fits
Pack voltages for LiFePO4 cells (3.2 V nominal, 3.65 V full, 2.5 V cut-off per cell) and the continuous power the JK Smart BMS 8S-20S 100A can carry at its rated 100 A:
| Series | Nominal | Full charge | Cut-off | Power at 100 A | Typical use |
|---|---|---|---|---|---|
| 8S | 25.6 V | 29.2 V | 20.0 V | 2.6 kW | 24 V inverters, 3.6-4.2 kW hybrid inverters, solar storage |
| 15S | 48.0 V | 54.8 V | 37.5 V | 4.8 kW | 48 V inverters, e-rickshaws, e-loaders and solar storage |
| 16S | 51.2 V | 58.4 V | 40.0 V | 5.1 kW | 48 V inverters, e-rickshaws, e-loaders and solar storage |
| 20S | 64.0 V | 73.0 V | 50.0 V | 6.4 kW | 60 V e-scooties and e-bikes |
Inverter, cable and fuse
On a 16S pack (51.2 V) the BMS passes up to about 5.1 kW, so it suits an inverter or motor controller drawing no more than about 5.1 kW from the battery (about 4.6 kW of AC output at 90% inverter efficiency). For the main battery leads use at least 16 mm² (6 AWG) copper cable and a 125 A DC fuse or breaker; if your load pulls more than 100 A for long, choose a higher-current BMS.
16S पैक (51.2 V) पर यह BMS लगभग 5.1 kW तक की पावर दे सकता है। मेन बैटरी केबल कम से कम 16 mm² (6 AWG) कॉपर रखें और 125 A का DC फ़्यूज़ लगाएँ।
Smart or Semi-Smart?
This Smart version adds Bluetooth app monitoring: you can read every cell voltage, the pack current and state of charge on your phone, and see an alarm the moment the BMS cuts off. It costs ₹870 more than the JK Semi-Smart BMS 8S-20S 100A, which has the same 100 A rating but no app. Pick this one if you want to watch the pack or troubleshoot it without opening the box.
इस Smart वर्ज़न में Bluetooth ऐप है - हर सेल का वोल्टेज और बैटरी की हालत फ़ोन पर दिखती है। अगर आप बैटरी पर नज़र रखना चाहते हैं तो यह लें।
Closest alternative: the JK Smart BMS 8S-20S 60A differs only in continuous discharge current 100 A here against 60 A, and this one costs ₹1,200 more than it.
Closest alternative: the JK Smart BMS 8S-20S 150A differs only in continuous discharge current 100 A here against 150 A, and this one costs ₹890 less than it.
Compare with similar models
| Model | Type | Continuous discharge current | Active balance current | Price |
|---|---|---|---|---|
| JK Smart BMS 8S-20S 100A (this page) | Smart BMS with active balancing | 100 A | 0.6 A | ₹5,349 |
| JK Semi-Smart BMS 8S-20S 40A | Semi-Smart BMS with active balancing | 40 A | 0.6 A | ₹3,069 |
| JK Semi-Smart BMS 8S-20S 60A | Semi-Smart BMS with active balancing | 60 A | 0.6 A | ₹3,329 |
| JK Smart BMS 8S-20S 40A | Smart BMS with active balancing | 40 A | 0.4 A | ₹3,889 |
| JK Smart BMS 8S-20S 60A | Smart BMS with active balancing | 60 A | 0.6 A | ₹4,149 |
| JK Semi-Smart BMS 8S-20S 80A | Semi-Smart BMS with active balancing | 80 A | 0.6 A | ₹4,229 |
| JK Semi-Smart BMS 8S-20S 100A | Semi-Smart BMS with active balancing | 100 A | 0.6 A | ₹4,479 |
| JK Smart BMS 8S-20S 150A | Smart BMS with active balancing | 150 A | 0.6 A | ₹6,239 |
| JK Smart BMS 8S-20S 200A | Smart BMS with active balancing | 200 A | 0.6 A | ₹7,479 |
Related guides
FREQUENTLY ASKED QUESTIONS
अक्सर पूछे जाने वाले सवाल
Is there a warranty on this product?क्या इस प्रोडक्ट पर वारंटी है?
No. This product is sold without any warranty. Only damaged, defective or wrong items are replaced within 7 days of delivery.
नहीं। इस प्रोडक्ट पर कोई वारंटी नहीं है। सिर्फ़ टूटा हुआ, ख़राब या ग़लत प्रोडक्ट डिलीवरी के 7 दिन के अंदर बदला जाता है।
How long does delivery take?डिलीवरी में कितना समय लगता है?
Orders are dispatched in 1-2 working days and delivered in 3-7 working days across India, with online order tracking.
ऑर्डर 1-2 वर्किंग दिनों में डिस्पैच होता है और पूरे भारत में 3-7 वर्किंग दिनों में डिलीवर हो जाता है। आप ऑर्डर को ऑनलाइन ट्रैक भी कर सकते हैं।
What if the product arrives damaged or defective?अगर प्रोडक्ट टूटा हुआ या ख़राब निकले तो?
Damaged, defective or wrong items are replaced within 7 days of delivery - see our refund policy for details.
टूटा हुआ, ख़राब या ग़लत प्रोडक्ट डिलीवरी के 7 दिन के अंदर बदल दिया जाता है। पूरी जानकारी हमारी रिफ़ंड पॉलिसी में है।
Can you help me choose the right model?क्या आप सही मॉडल चुनने में मदद करेंगे?
Yes. Message us on WhatsApp or call +91 80575 73040 with your load and backup needs and our team will suggest the right size.
हाँ। अपना लोड और कितने घंटे का बैकअप चाहिए, यह WhatsApp पर भेजें या +91 80575 73040 पर कॉल करें - हमारी टीम सही साइज़ बताएगी।
