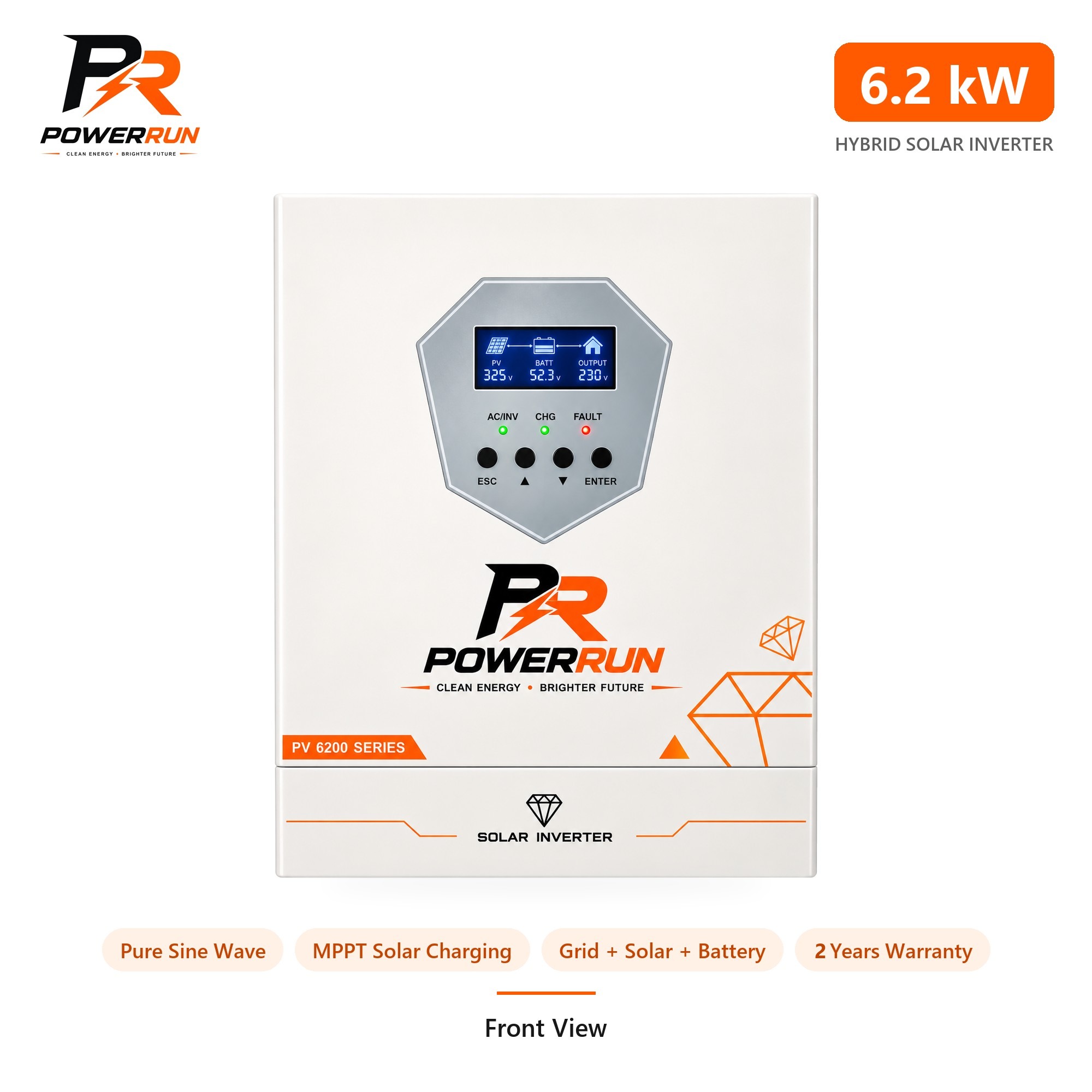

PR Hybrid Inverter 6.2kW
6.2kW grid-interactive hybrid inverter with built-in MPPT for larger homes and businesses.
🚚 Free delivery across India · dispatch in 1–2 working days
2 Years Warranty

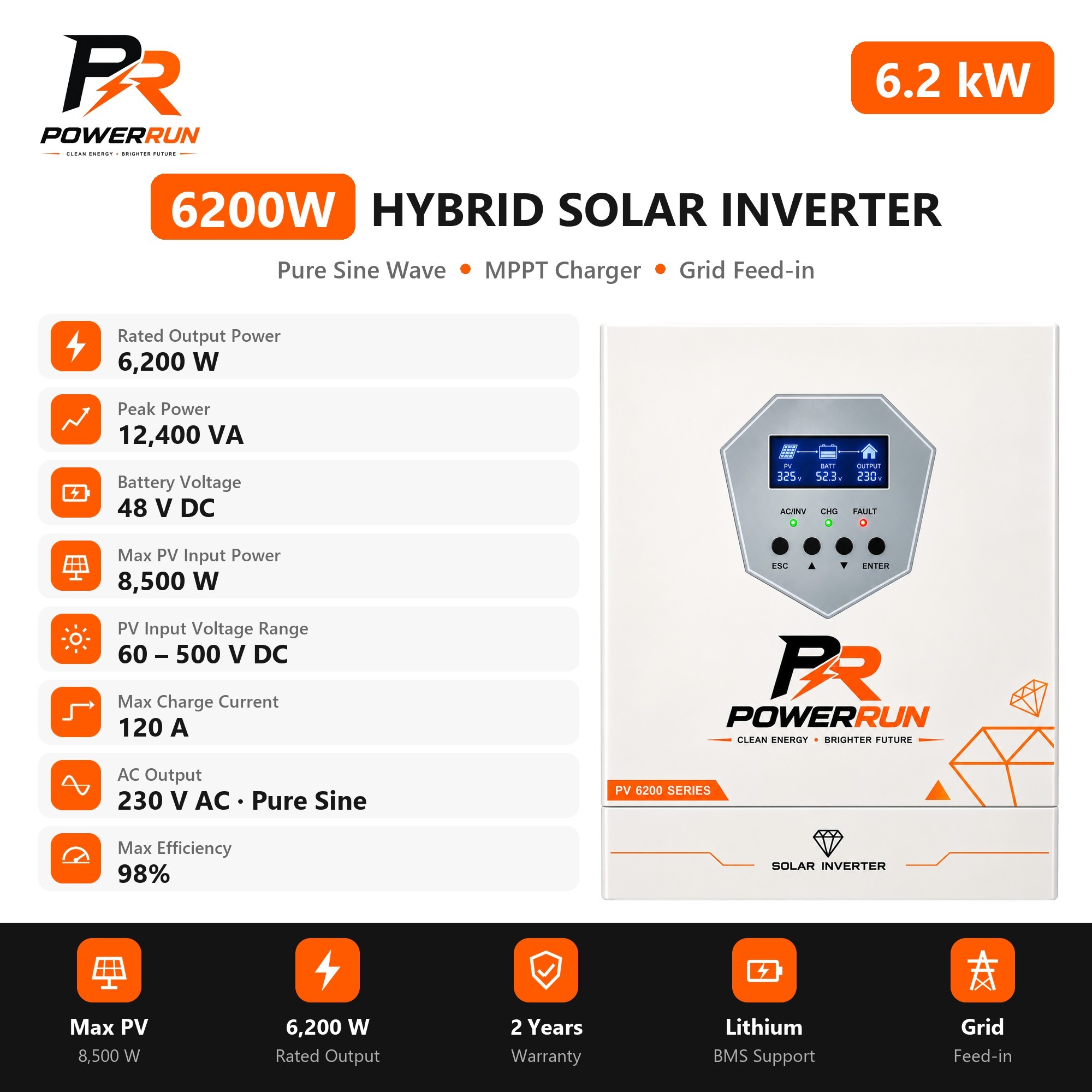

Specifications
| Rated Output Power | 6,200 W |
| Peak Power | 12,400 VA |
| Battery Voltage | 48 V DC |
| Solar Charger | MPPT |
| Max PV Input Power | 8,500 W |
| PV Input Voltage Range | 60–500 V DC |
| Max Charge Current | 120 A |
| AC Output | 230 V AC, Pure Sine Wave |
| Transfer Time | 10 ms |
| Max Efficiency | 98% |
| Monitoring | LCD + WiFi (optional module) |
Key Features
- Pure sine wave output
- Built-in MPPT solar charge controller
- Seamless grid / solar / battery switching in 10ms
- LCD and WiFi app monitoring
- Up to 98% conversion efficiency
Product Description

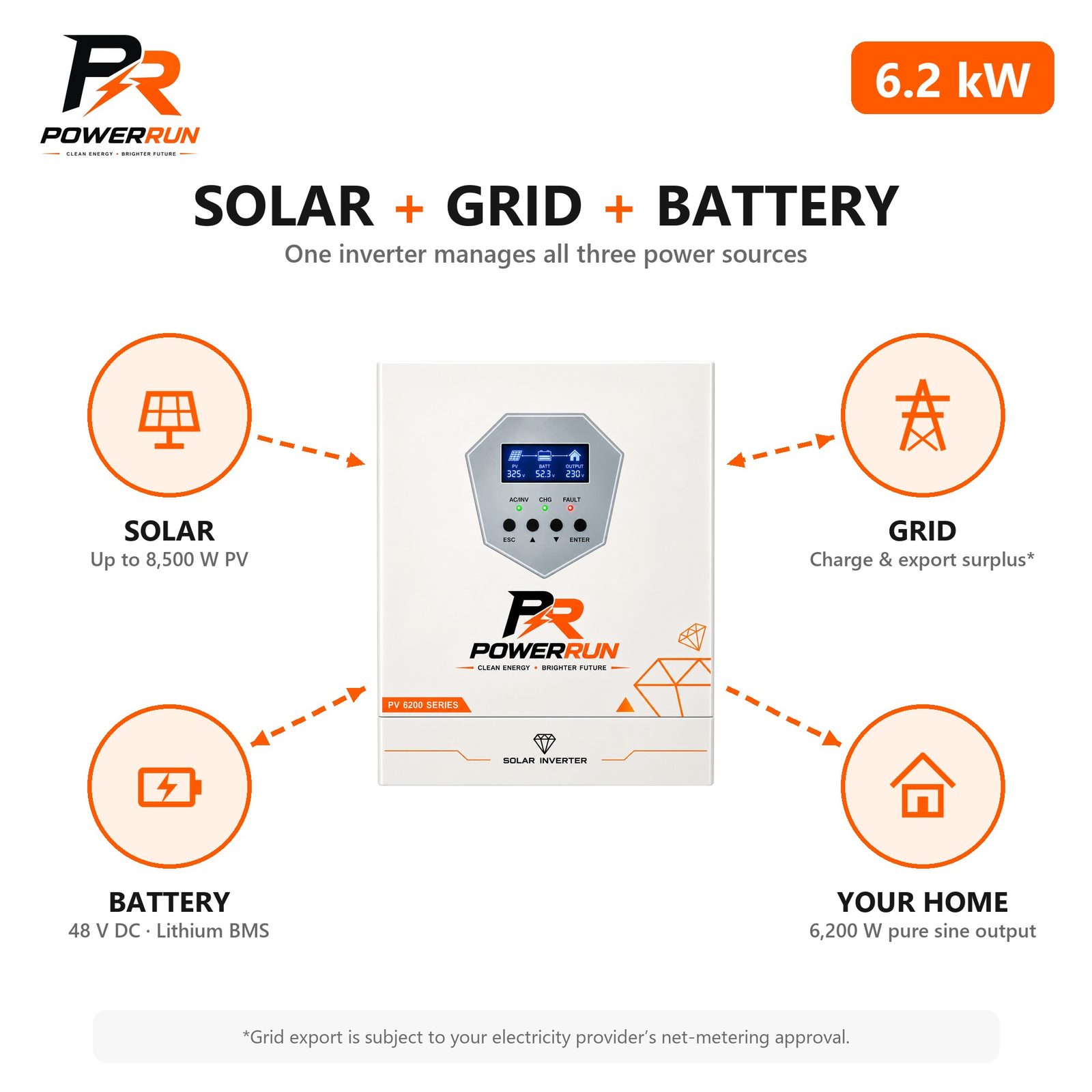

The PowerRun 6.2kW Hybrid Solar Inverter runs on a 48V battery bank and delivers 6,200W (12,400VA peak) of clean 230V pure sine wave power, with a built-in MPPT controller handling up to 8,500W of solar input. Designed for larger homes and small commercial setups, it switches between grid, solar and battery in 10ms and reaches up to 98% efficiency, with LCD + WiFi monitoring and a 2-year warranty.
SIZING & SETUP GUIDE
साइज़ और सेटअप गाइड
Battery for this inverter
The PR Hybrid Inverter 6.2kW runs on a 48 V DC battery bank, so it needs a 51.2 V LiFePO4 battery. At its full rated 6.2 kW it draws about 134 A from the battery (6.2 kW ÷ 51.2 V at about 90% efficiency): use at least 25 mm² (4 AWG) copper battery cable and a 175 A DC breaker or fuse.
| Battery | Energy | Backup at 1.6 kW (25% load) | Backup at 3.1 kW (50% load) |
|---|---|---|---|
| PR LFP Battery 51.2V 100Ah | 5.12 kWh | 2 h 41 min | 1 h 20 min |
| PR LFP Battery 51.2V 200Ah | 10.24 kWh | 5 h 21 min | 2 h 41 min |
| PR LFP Battery 51.2V 280Ah | 14.34 kWh | 7 h 30 min | 3 h 45 min |
| PR LFP Battery 51.2V 400Ah | 20.48 kWh | 10 h 42 min | 5 h 21 min |
| PR LFP Battery 51.2V 600Ah | 30.72 kWh | 16 h 3 min | 8 h 2 min |
| PR LFP Battery 51.2V 800Ah | 40.96 kWh | 21 h 24 min | 10 h 42 min |
How much solar it takes
Its MPPT solar charger accepts up to 8.5 kW of panels (8,500 W), which makes about 34 units (kWh) a day in average Indian sun. The most panels of each PowerRun size that stay within that limit (arrange them in strings that stay inside the 60–500 V DC input range):
| Panel | Max panels | Array size |
|---|---|---|
| PR Solar Panel 450W | 18 | 8.1 kW |
| PR Solar Panel 535W | 15 | 8.0 kW |
| PR Solar Panel 550W | 15 | 8.2 kW |
| PR Solar Panel 580W | 14 | 8.1 kW |
| PR Solar Panel 600W | 14 | 8.4 kW |
यह इन्वर्टर 48 V DC बैटरी पर चलता है, इसलिए 51.2 V लिथियम बैटरी लगेगी। पूरे लोड पर यह बैटरी से लगभग 134 A लेता है - कम से कम 25 mm² केबल और 175 A का DC ब्रेकर लगाएँ। सोलर पैनल अधिकतम 8.5 kW तक लगा सकते हैं।
Compare PowerRun hybrid inverters
| Model | Rated output | Battery | Max solar | Price |
|---|---|---|---|---|
| PR Hybrid Inverter 3.6kW | 3,600 W | 24 V DC | 5.0 kW | ₹29,650 |
| PR Hybrid Inverter 4.2kW | 4,200 W | 24 V DC | 6.0 kW | ₹34,499 |
| PR Hybrid Inverter 6.2kW (this page) | 6,200 W | 48 V DC | 8.5 kW | ₹36,499 |
| PR Hybrid Inverter 8.2kW | 8,200 W | 48 V DC | 11.0 kW | ₹68,499 |
| PR Hybrid Inverter 11kW | 11,000 W | 48 V DC | 17.0 kW | ₹76,499 |
| PR Hybrid Inverter 12kW | 11,000 W | 48 V DC | 17.0 kW | ₹80,499 |
Related guides
FREQUENTLY ASKED QUESTIONS
अक्सर पूछे जाने वाले सवाल
Which battery do I need for the PR Hybrid Inverter 6.2kW?PR Hybrid Inverter 6.2kW के साथ कौन सी बैटरी लगेगी?
It runs on a 48 V DC battery bank. PowerRun 51.2 V LiFePO4 lithium batteries are a direct match; choose the capacity (Ah) by how many hours of backup you need.
यह 48 V DC बैटरी बैंक पर चलता है। PowerRun की 51.2 V LiFePO4 लिथियम बैटरी इसके साथ सीधे लग जाती है; आपको कितने घंटे का बैकअप चाहिए, उसके हिसाब से क्षमता (Ah) चुनें।
What warranty does it come with?इसके साथ कितनी वारंटी मिलती है?
2 Years Warranty. Register the product at powerrun.in/warranty after delivery.
2 साल वारंटी। डिलीवरी के बाद powerrun.in/warranty पर प्रोडक्ट रजिस्टर करें।
How long does delivery take?डिलीवरी में कितना समय लगता है?
Orders are dispatched in 1-2 working days and delivered in 3-7 working days across India, with online order tracking.
ऑर्डर 1-2 वर्किंग दिनों में डिस्पैच होता है और पूरे भारत में 3-7 वर्किंग दिनों में डिलीवर हो जाता है। आप ऑर्डर को ऑनलाइन ट्रैक भी कर सकते हैं।
What if the product arrives damaged or defective?अगर प्रोडक्ट टूटा हुआ या ख़राब निकले तो?
Damaged, defective or wrong items are replaced within 7 days of delivery - see our refund policy for details.
टूटा हुआ, ख़राब या ग़लत प्रोडक्ट डिलीवरी के 7 दिन के अंदर बदल दिया जाता है। पूरी जानकारी हमारी रिफ़ंड पॉलिसी में है।
Can you help me choose the right model?क्या आप सही मॉडल चुनने में मदद करेंगे?
Yes. Message us on WhatsApp or call +91 80575 73040 with your load and backup needs and our team will suggest the right size.
हाँ। अपना लोड और कितने घंटे का बैकअप चाहिए, यह WhatsApp पर भेजें या +91 80575 73040 पर कॉल करें - हमारी टीम सही साइज़ बताएगी।
